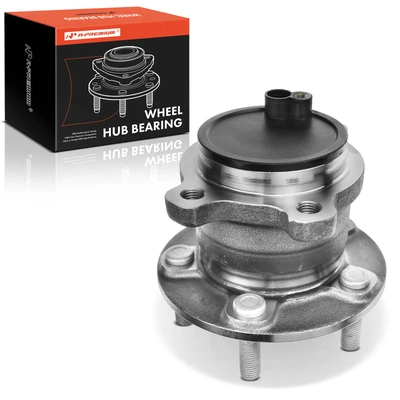

Ford Hub Bearing

Choose the Correct Wheel Hub Bearing

A hub bearing supports wheel rotation at a specific corner of the vehicle, and fitment depends on more than year and model. Enter the complete vehicle, then confirm front or rear position, driver or passenger side, drive type, wheel stud count, flange dimensions, ABS sensor configuration, and package quantity. Read every trim, drivetrain, and body-style note because a similar-looking wheel hub assembly may use different mounting or sensing features.

Wheel Bearing vs. Wheel Hub Assembly

A wheel bearing may be serviced as a separate pressed component on some vehicles. A wheel bearing and hub assembly combines the bearing with a mounting hub and may also include wheel studs or an ABS-related component. A-Premium category products include preassembled hub units, but included parts vary by SKU. Confirm the item title, product images, specifications, and notes instead of assuming every wheel hub bearing includes the same hardware.

The required repair depends on the vehicle's wheel-end design and the condition of the surrounding parts. If the service procedure calls for a separate bearing, a complete assembly may not be an alternative. If it specifies a unitized hub, do not disassemble the sealed unit to reuse internal components.

Position, Lug Count, Drive Type, and ABS Options

Wheel hub assemblies can share a general shape while differing at the mounting flange, wheel face, axle, or sensor. Verify these configuration details together.

• Installation position: Listings can be front, rear, one side, either side, or a driver-and-passenger pair. Match the position being repaired.
• Wheel studs: Verify stud quantity and bolt-circle data. A 5 lug wheel hub assembly is not interchangeable with a six-stud version.
• Drive configuration: Check FWD, RWD, AWD, or 4WD notes. Current products include applications restricted to a particular drivetrain.
• ABS equipment: A wheel bearing with ABS sensor or encoder must match the vehicle's sensing design and connector requirements.
• Quantity: Some products contain one assembly and others contain a left-and-right pair, so confirm the listed quantity before planning the repair.

Symptoms That Require Wheel-End Inspection

A humming, growling, or grinding sound that changes with road speed, noticeable wheel play, vibration, or an ABS warning can justify wheel-end inspection. These signs do not identify the hub bearing by themselves. Tire noise, brake contact, a CV joint, axle hardware, alignment issues, or a separate wheel-speed circuit fault may sound or behave similarly.

Inspect the tire, brake, hub, axle, knuckle, and wiring using the vehicle procedure. If an ABS code is present, test the circuit and inspect the related ABS speed sensor, connector, harness, and encoder or tone ring before choosing a hub. Replacing a bearing without isolating the fault can leave the warning or noise unchanged.

Fitment and Installation Checks

Compare the original assembly with the selected product before installation: flange pattern, pilot diameters, splines where applicable, stud count, connector, cable routing, and mounting position should agree. Keep the mounting surfaces clean and inspect the steering knuckle and axle threads for damage. Route any sensor lead through the original clips and away from rotating or hot parts.

Use the vehicle manufacturer's tightening sequence and torque specifications for the mounting bolts, axle nut, brake components, and wheel. Follow the specified tools; where the procedure calls for a calibrated torque wrench, do not substitute an impact wrench. After assembly, check free rotation, brake operation, sensor routing, and warning lights. Arrange an alignment check if the repair disturbed alignment-adjusting components or if tire wear and tracking symptoms remain.
